SH51-02C Corvette

High-speed, high-performance optical interconnects

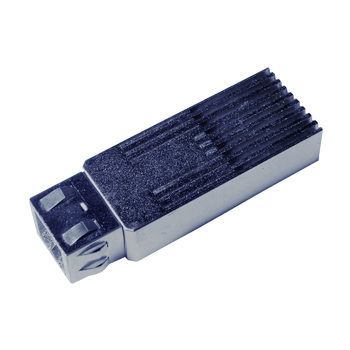

Product Photo

SH51-02C Corvette Embedded Optical Subsystem

The SH51-02C Corvette is an optical communication subsystem that transmits up to 24 Gbps of data (4 x 6 Gbps) PLUS includes a 1.25 Gbps bidirectional side-band channel for control and communication, all on one multimode fiber. The embedded engine module has a simple plug-down design and accepts a standard SC optical connector. With integrated drivers and amplifiers, the SH51-02C eliminates the need for in-house optical design expertise for all your DVI, HDMI, machine vision, and other high-speed solutions.

Product Brief

Specifications

  • Four data lanes at 6 Gbps each for 24 Gbps data links
  • Bidirectional side-band channel supports up to 1.25 Gbps full-duplex communication
  • All data multiplexed onto a single multimode fiber
  • Accepts standard SC-terminated 50-micron fiber
  • Allows FCC Class B compliance at customer end product level

Features & Benefits

Inneos | SH51-02C Corvette

High-Bandwidth, One Fiber
24 Gbps + 1.25 Gbps

Inneos | SH51-02C Corvette

Drop-in design - Complete optoelectronic module

Inneos | SH51-02C Corvette

Supports up to 1000m interconnects

Inneos | SH51-02C Corvette

Flexible application - protocol agnostic, asymmetric data rates

OptoEngine™ Technology

Inneos OptoEngine™ technology delivers high-performance optical connectivity in a compact, easy-to-integrate package. Designed to convert electrical signals to optical signals and back again, OptoEngine™ modules enable high-speed data and video transmission over fiber while reducing the size, weight, power consumption, and electromagnetic interference associated with traditional copper interconnects.

Inneos | SH51-02C Corvette

Let our experienced design team help you get started on your next-level interconnect solution.
